XD-C
XDLASER
| Laser power: | |
|---|---|
| Price: | |
| Quantity: | |
| PDF Export | |
Introducing our state-of-the-art fully enclosed fiber laser marking machine, a cutting-edge solution designed with safety and environmental protection in mind. As a leading manufacturer in the industry, we prioritize the well-being of operators and the environment, and our fully enclosed machine offers unmatched safety features and safeguards.
Enhanced Operator Safety: Our fully enclosed fiber laser marking machine prioritizes operator safety by providing a secure working environment. The fully enclosed design ensures that the laser beam remains contained within the machine during the marking process, minimizing the risk of accidental exposure. With robust safety features, such as interlock systems and protective shields, operators can work with peace of mind, knowing that their safety is our top priority.
Protection for Surrounding Environment: The fully enclosed design of our fiber laser marking machine goes beyond operator safety; it also protects the surrounding environment. By containing the laser beam within the machine, it prevents any stray beams from escaping and potentially causing harm. This feature is particularly important in shared workspaces or environments where the laser marking machine operates in close proximity to other equipment or personnel.
Reduction of Noise and Fumes: Our fully enclosed fiber laser marking machine not only enhances safety but also contributes to a more comfortable working environment. The enclosed structure helps reduce noise generated during the marking process, minimizing disruptions and creating a quieter workplace. Additionally, it incorporates efficient fume extraction systems that capture and filter the fumes produced during laser marking, ensuring cleaner air quality and promoting a healthier atmosphere.
Precision and Versatility: Despite its fully enclosed design, our fiber laser marking machine maintains exceptional precision and versatility. The high-quality fiber laser source and advanced optics enable precise and detailed marking on a wide range of materials, including metals, plastics, ceramics, and more. Whether you need to mark serial numbers, logos, or intricate designs, our machine delivers consistent and reliable results.
User-Friendly Interface and Intuitive Operation: Operating our fully enclosed fiber laser marking machine is a user-friendly experience. The machine features an intuitive interface and user-friendly software that streamline the marking workflow. With easy-to-use controls and a range of customizable options, operators can quickly set up marking parameters, import designs, and execute precise markings with minimal training.
Energy Efficiency and Cost Savings: Our fully enclosed fiber laser marking machine is designed with energy efficiency in mind. It incorporates energy-saving features and optimized laser systems that minimize power consumption without compromising on performance. This not only reduces operational costs but also contributes to a more sustainable and eco-friendly approach to laser marking.
Experience the safety and environmental benefits of our fully enclosed fiber laser marking machine. Contact us today to learn more about how our advanced machine can enhance your marking operations, protect your operators, and contribute to a safer and greener working environment.
1. Raycus/MAX/IPG/JPT Multiple choice
Different brands laser sources with different laser power are available.
The most popular laser power is 20W/30W/50W.The higher power, the deeper marking depth.
The bigger the working area,the bigger laser power needed. It is because small laser power if used on big size, can not mark clear enough.
Galvanometer scanning system
The galvanometer scanning system is composed of optical scanner and servo control. The whole system adopts new technology, new materials, new technology and new working principle to design and manufacture.
The optical scanner adopts a servo motor with the moving magnetic deflection mode. It has the advantages of large scanning angle, large peak moment, large load inertia, small electromechanical time constant, fast working speed, stable and reliable. The precision bearing clearance mechanism provides the error of the ultra bottom axial and radial runout“ Electronic torsion bar replaces the traditional elastic material torsion bar, which greatly improves the service life and the reliability of long-term work; The principle of zero power keeping at any position not only reduces the power consumption, but also reduces the heating effect of the device, and saves the constant temperature device; Advanced high stability and precise position detection technology provides high linearity, high resolution, high repeatability and low drift performance.
Optical scanner is divided into X-direction scanning system and Y-direction scanning system. Laser reflection lens is fixed on each servo motor shaft. Each servo motor is controlled by a digital signal from the computer.

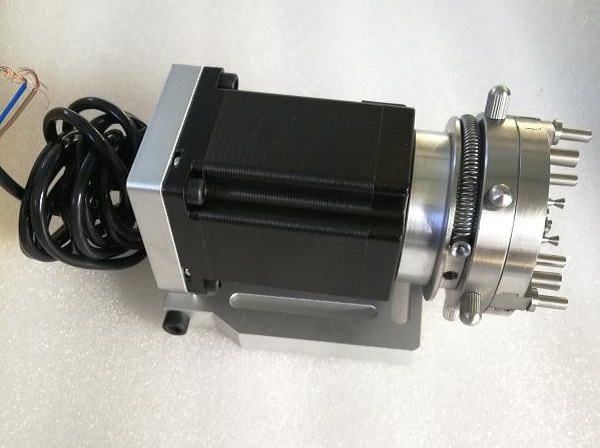

Rotary attachment is used for marking on round materials like pens,cups,rings,bracklets and others. It is an optional part.
| Model | XD-P fiber laser marking machine | |||
| Laser power | 20W,30W,50W laser generator (Raycus) | |||
| Laser wavelength | 1064nm ±10nm | |||
| Q-frequency | 20KHz~100KHz | |||
| Pules frequency | 20KHz~200KHz | |||
| Divergence | 0.3mard | |||
| Minimum line width | 0.01mm | |||
| Minimum character | 0.1mm | |||
| Marking speed | 10000mm/s | |||
| Marking depth | 0~0.5mm | |||
| Engraving line speed | ≤ 7000mm/s | |||
| Repeat accuracy | ±0.001mm | |||
| Beam quality | M2:1.2~1.8 | |||
| Marking format | Graphics, text, bar code,two-dimensional code, automatically marking the date, batch number,serial number, frequency,etc. | |||
| Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. | |||
| Working voltage | 220V ± 10%/50HZ/4A | |||
| Unit power | <0.5KW | |||
| Use of the environment | Clean and dust free of dust less | |||
| Working condition | Humidity 5%-75%,Free of condensed water | |||
| Laser module life | >100000 hours | |||
| Packing | Plywood case | |||
Every machine will be packed in wooden box and send to customers by sea.
Welcome to choose XDLASER
Whatsapp: +86-15169026664
Skype/wechat: juliali01
