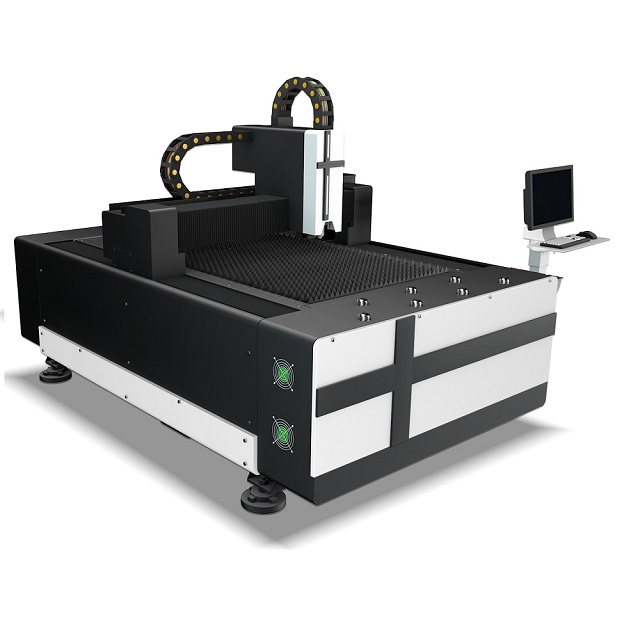

5% Discount Mini Size High Precision 1390 Fiber Metal Laser Cutting Machine

1390 mini size fiber metal laser cutting machine has working size 1300mm*900mm. High precision suitable for laser power 1500W,2000W,3000W,6000W. Mini size do not take big space of your factory.
  • XD-1390F

  • XDLASER

Working size:
Laser power:
Price:
SKU:
Availability:
Quantity:

PDF Export

1390 Fiber Metal Laser Cutting Machine Video:

Introduction:

The Mini Size High Precision 1390 Fiber Metal Laser Cutting Machine is a compact and sophisticated piece of equipment designed for precision cutting of metal materials, offering a perfect balance between size and functionality.

This machine is engineered to deliver exceptional cutting quality with its high-definition fiber laser technology, which is capable of handling a wide range of metal thicknesses and types, from thin sheets to more robust materials.

Its compact design makes it an ideal solution for workshops with limited space, while its high precision ensures that it meets the demands of intricate and detailed cutting tasks.

The 1390 model is also equipped with advanced features such as an auto-focus system for consistent cutting quality, a user-friendly control panel for easy operation, and a robust build that guarantees durability and reliability in industrial settings.

Furthermore, its modular design allows for future upgrades, ensuring that the machine can evolve with the changing needs of the business. This laser cutting machine is not just a tool, but a strategic investment for businesses seeking to enhance their production capabilities with state-of-the-art technology.

1390 Fiber Laser Cutting Machine Application:

Used for cutting a variety of metal plates, mainly used in cutting stainless steel,

carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy

plate, rare metal and other metal materials.


Stainless Steel Cutting Sample(47)

Mild Steel Cutting Sample (86)

1390 Fiber Laser Cutting Machine Start Up Procedure:

Start up procedure:

1. Total power supply. Start of voltage stabilized power supply (check the three-phase voltage balance)

2. Open the main valve of cutting gas (check whether N2 and O2 are leaking)

3. Turn on the water cooler. Check whether the water temperature and water pressure are normal (the laser water temperature is 26 ℃, the temperature of the fiber and cutting head is real-time (26-30 ℃))

4. Start the main power supply of the electric cabinet, start the power supply of the machine tool (blue key, on to start) and turn on the computer host

5. Laser power on (white button, on to start)

6. The operating software system starts and the machine returns to zero. Place the corresponding material to calibrate the cutter head sensor and test the follow-up (the machine must return to zero when starting every day)

7. The software is open to the right lower laser power supply and the shutter point, adjust the focus position and follow-up nozzle according to the corresponding materials.

8. Manually test the gas N2 and O2 to confirm whether the gas pressure is normal and whether the solenoid valve works normally according to the air blowing test.

9. Verify that the cutting procedure is in accordance with the material and the selection of gas is correct.

10. In the (automatic interface), the machining program is called and the cutting parameters are loaded.

11. Start the program, red light border. Check if the cutting procedure is in the sheet range.

12. Start the program and start the machining. During the process of processing, pay attention to the cutting condition at any time. If there is any collision or path hole, it is necessary to pause immediately. After troubleshooting, continue cutting.

Shutdown steps (opposite to power on)

1. Remove the waste material from the machine tool, turn off the main switch of the air valve, press the blow key to release the gas in the equipment.

2. Turn off the optical switch, cut off the laser power supply, and move the X and Y axes of the machine tool to the middle.

3. Turn off the software and computer, turn off the main power switch, and then disconnect the water cooler and the voltage regulator.

XD-1390F (13)

1390 Fiber Metal Laser Cutting Machine Features:

1. Mini size, easy operate, save the space of your factory.

2. Compact Design: The "1390" in the name typically refers to the machine's working area dimensions, which are 1300mm by 900mm. This makes it a mini size compared to larger industrial models, suitable for small to medium-sized production needs or limited workspaces.

3. Suitable for cutting many metals such as stainless steel, carbon steel, mild steel, tool steel, galvanized steel, spring steel, aluminum, copper, brass, alloy, silver, gold, iron, titanium, chromium, manganese, cobalt, nickel.

4. When the laser is running, it only needs electric energy and does not need to generate additional gas, so it has the lowest operation and maintenance costs;

5. The fiber laser adopts semiconductor modular and redundant design. There is no optical lens in the resonant cavity and no start-up time. It has the advantages of no adjustment, no maintenance and high stability. It reduces the cost of accessories and maintenance time, which is unmatched by traditional lasers;

6. The output wavelength of the fiber laser is 1.064 μ m, which is 1 / 10 of the wavelength of CO2. The output beam has good quality and high power density, which is very conducive to the absorption of metal materials. It has excellent cutting and welding ability, so that the processing cost is the lowest;


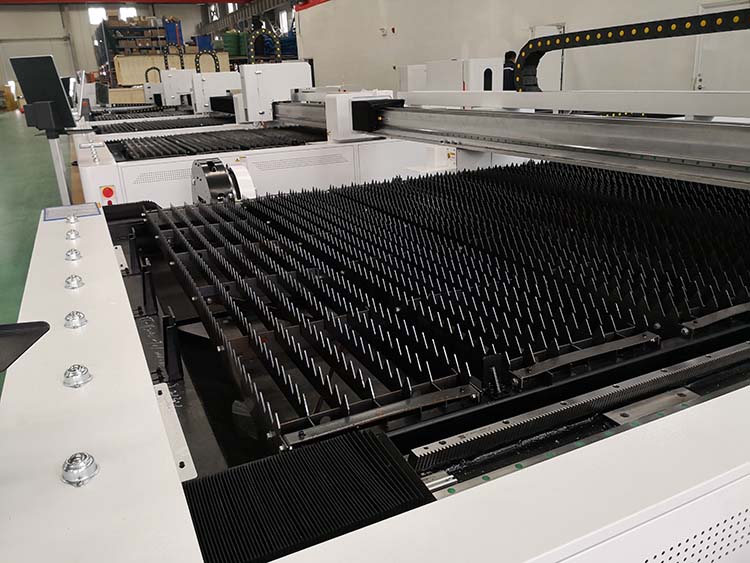

One Table Fiber Laser Marker (35)




Technical Information:

Model

XD-1390F Fiber Laser Cutting Machine

Working Area

1300*900mm

Z-axis Travel Length

0-200mm

Laser Power

1000W,1500W,2000W optional

Working Table Type

Sawtooth working table suitable for cutting any metal and suitable for loading heavy metal.

Cutting Ability

Stainless steel 8mm,carbon steel up to 18mm

Maximum Idle Running Speed

120m/min

Position Speed

100m/min

Accelerated Speed

1.5G

Repeated Position Accuracy

±0.03mm

Transmission

Double Guide rails and double Racks

Optical Lens Brand

Raytools,sWavelength

Auxiliary equipment

Nitrogen producer,air filter,material loader,Auto partitioned exhausted system

Graphic Format Supported:

AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, IGES

Auxiliary Gas

Oxygen, Nitrogen

Power Consumption

23.5KW

Working Voltage

380V/50Hz

Load-bearing Capacity

1200kgs

Machine size including Packing

4000mm*1600mm*1700mm

Gross Weight

3000kgs

Full Protect cover or not

Optional

Exchange table or not

Optional

Laser wave length:

1064nm

Consumable parts

Nozzle,lens,protect mirror

1390 Metal Fiber Laser Cutting Machine Details:

1390 fiber laser details (4)1390 fiber laser details (8)1390 fiber laser details (3)

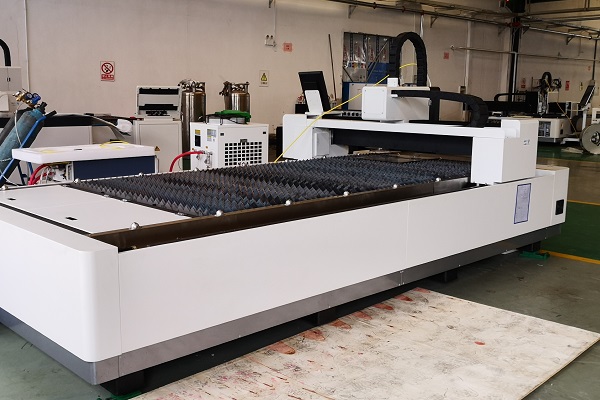

Fiber laser in factory




Welcome to contact XDLASER for details.

info@xdlasers.com

Whatsapp/wechat: +86-15169026664

Fiber laser Workshop 2

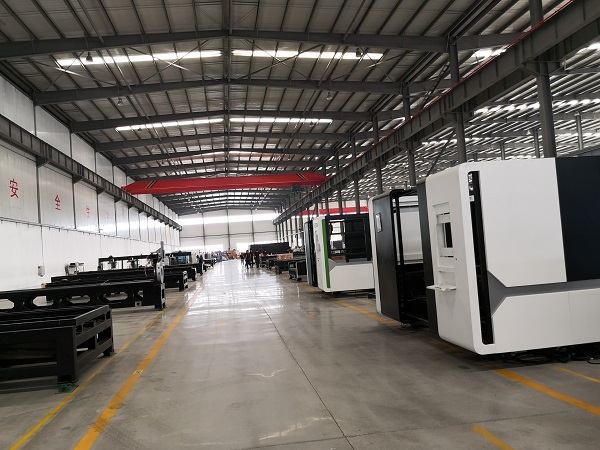

XD fiber laser factory

XD Certificate
